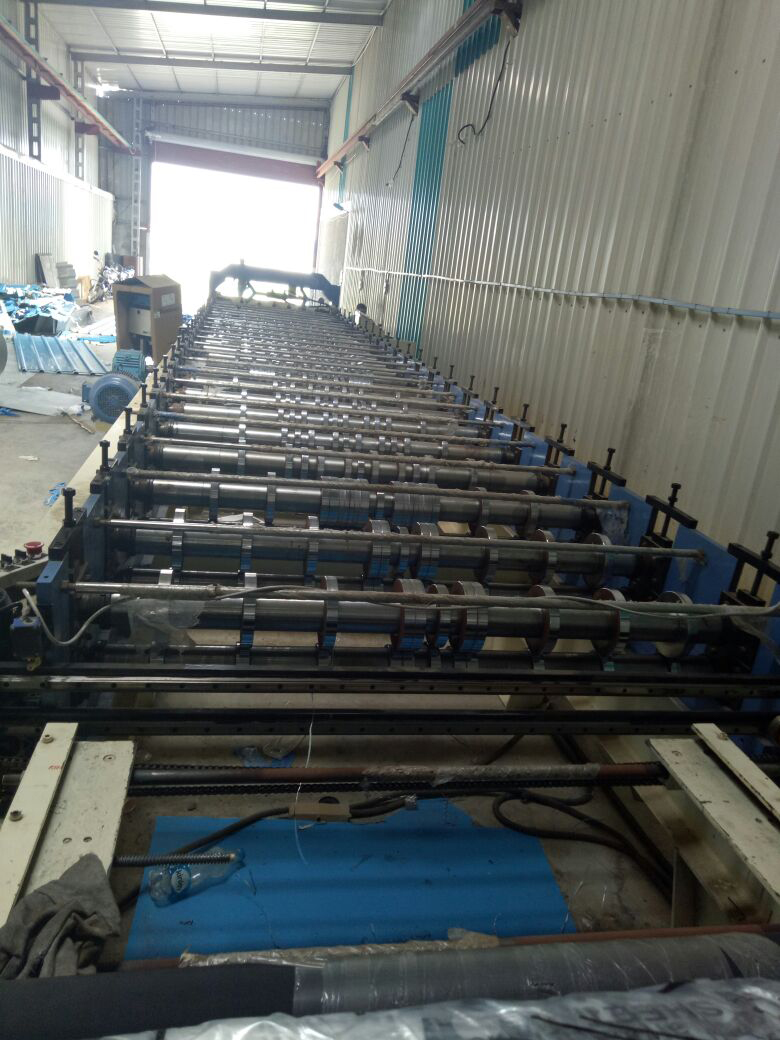

The Roof Forming Machine Cum Roofing Sheet Roll Forming Machine can Manufacturing a various kinds of gutters profile to satisfy customers’ required. Produced Roofing Sheet / Corrugated Sheet are in fashionable outline and high superiority. Roof Sheet are so mostly used in our daily life, so this machine will surely bring you a lot of profitable benefits to you.

• D coiler 5 ton cap.
• Entry Gate with
• Roll Forming Line with 23 station , 10 H.P. electrical.
• Control Panel semi auto
• Cutting Unit (Hydro.)

Technical Specifications

• Maximum sheet width that can be formed : 1450 mm
• Maximum sheet thickness in PPGI/PPGL Strips that can be formed : 0.5 mm
• Horizontal distance between shafts : 500mm
• Number of forming stations : 23 nos.
• Total HP for Line : 15
• Speed of the machine : 0 To 25 mt / minute
• Size of machine : 9500 x 1700 x 1100 mm

Mandrel Uncoiler

• Coil weight : 5 MT Max
• Coil width : 1450 MM
• Coil bore : 450 MM min, 510 MM max dia.
• Mandrel movement : Manually adjusted
• Back Tension : Manually adjusted

Entry Gate

Entry gate will be provided for movement of sheet to roll former.

Main Base

The main base is MS fabricated structure and adequately ribbed to minimize the distortion. It is accurately machined on top and bottom surfaces the threaded holes are made on the bed for positioning the stands.

Mill stands (Station)

The stands are mounted on the bed of the machine the line alignment can be easily done due to guide ways arranged on the bed of the machine. Each forming head consists of a fixed housing and sliding type out board housing. The mill stands will be arranged to locate shafts mounted on taper bearings. For the top shafts the bearings are housed in the cartridge type bearing blocks. The bottom shaft bearings are located in the bored machined in the housings. The bottom arbors are fixed in position whereas the top arbors along with cartridge blocks could be raised or lowered in vertical guides machined in housings.

Roll shafts

The roll shafts dia. 70mm will be manufactured from quality steel and will be keyed to locate tooling.

Drive

The drive to the roll former will be by means of a chain. The main drive will be provided by means of 10 HP motor

Tooling

One set of Tooling with EN grade will be from imported material suitable for your machine as standard supply. The same is involved in operations like rough machining, keyway, rough profiling, profile machining and inspection with final template for above.

Cutting Unit (Hydro)

Hydraulically operated power pack along with cutting die with 3 HP electrical.
